Cutting-edge 3D sensing

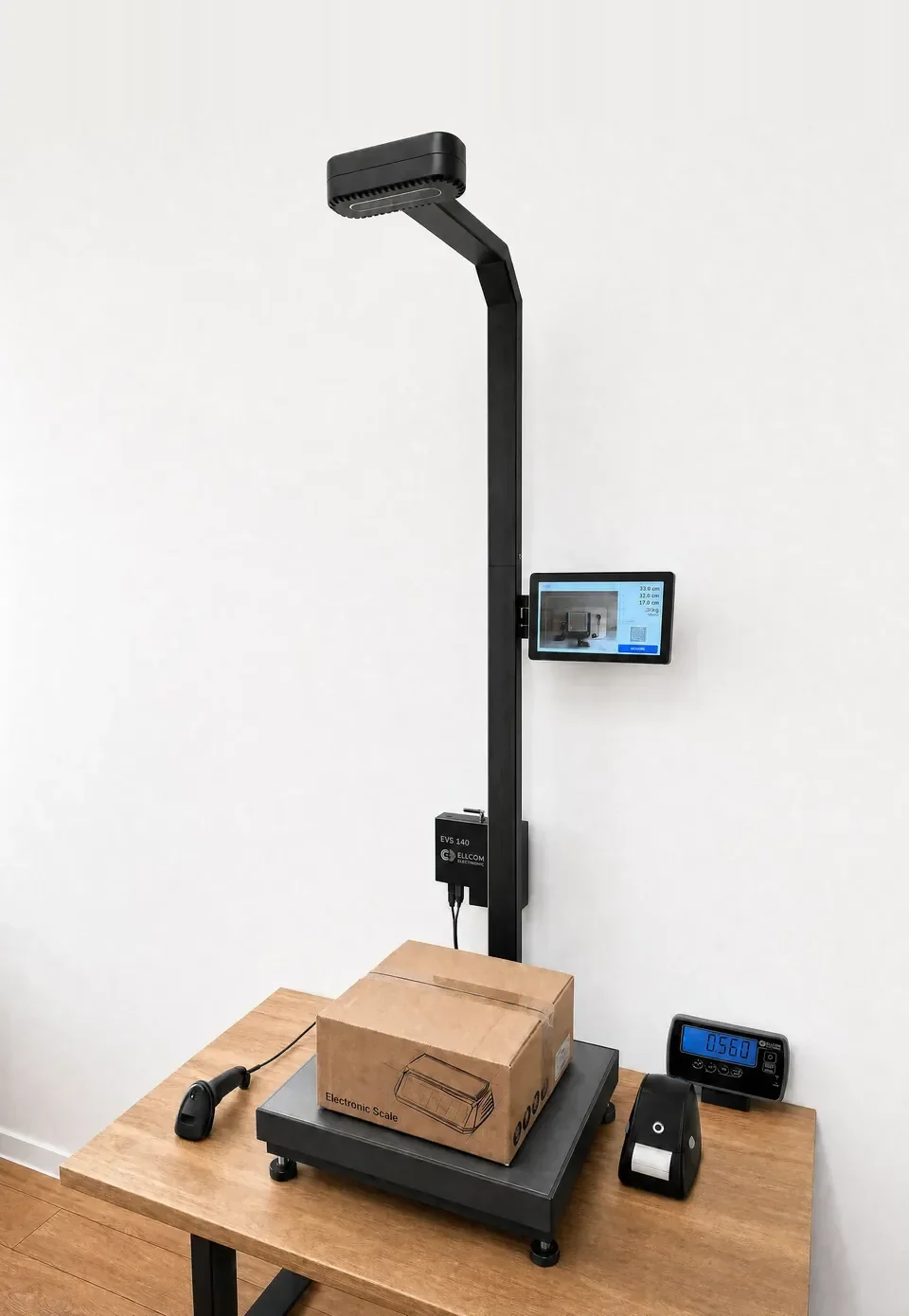

A latest-generation, high-resolution 3D depth camera looks down on a platform scale. The station has its own built‑in computer and a 10.1″ industrial touch display.
EVS 140 · Parcel dimensioner
Measure parcels of any shape in an instant.
Dimensions, weight and a photo of every item, captured by one station and sent straight to your logistics software.
-
How it works
01Place
Set any item on the platform scale. Box, bag or irregular shape, it doesn’t matter. Measurement starts automatically on weight, when you scan a barcode, or with a single tap. Choose whatever fits your workflow.
-
02
Measure

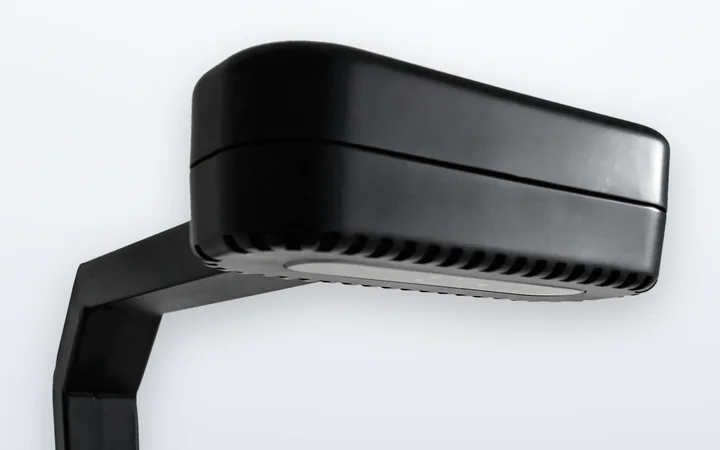

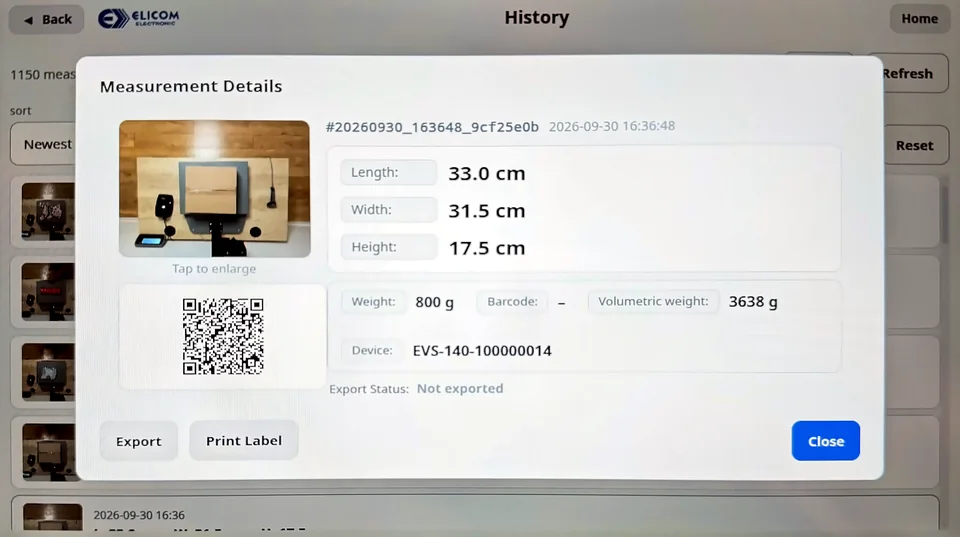

The overhead 3D sensing head and AI-powered software developed by Elicom capture length, width and height in about half a second on average, accurate to ±5 mm. Weight, volumetric weight and an RGB photo complete the record on the 10.1″ touch display.
-
03
Deliver
Fits into the systems you already run. Records flow to your WMS, TMS, ERP or shipping software via a real-time API or batch file export, and a shipping label prints on the spot.
Inside EVS 140
Exceptional performance, built to be cost-effective.
One compact station brings together advanced 3D depth sensing and measurement software developed by Elicom.
AI-powered software by Elicom

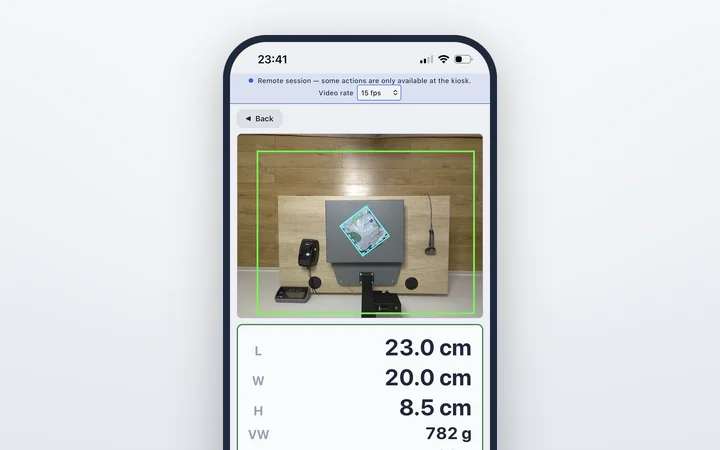

Built and thoroughly tested by our own engineering team, it measures irregular shapes as reliably as boxes and connects to your WMS, ERP or shipping software. Its cloud connection keeps it up to date, and you can monitor and control each station from a desktop or mobile device.
Cost-effective by design
No external PC, installation in under 10 minutes and remote maintenance keep the cost to buy, set up and run low.
- Average measurement
- ~0.5s
- Accuracy
- ±5mm
- Object size
- from5 × 5 × 5cm to60 × 60 × 80cm
- Installation
- <10min
No tape measure, no typing, no errors. Place the item, and EVS 140 does the rest.
Built to pay for itself
- Lower shipping costsThe correct volumetric weight on every label, so carriers have nothing to adjust or surcharge afterwards.
- Fewer carrier disputesDimensions, weight and a photo of each parcel on record, ready when an invoice doesn’t match.
- Faster throughputMeasuring takes seconds instead of a minute, so more parcels leave each station per hour.
See it in action

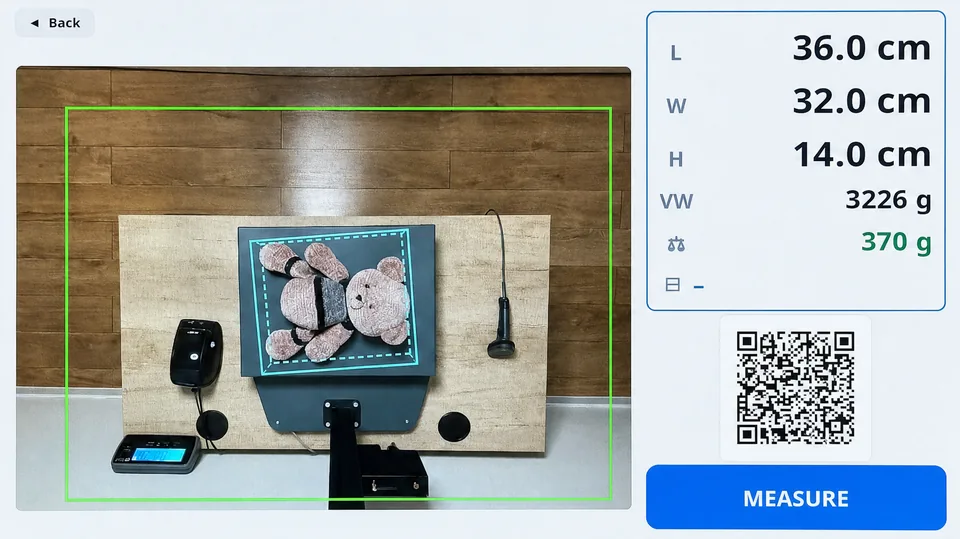

Irregular items too.
The hardest parcels to measure by hand are the ones that aren’t boxes. EVS 140 measures them just as quickly and accurately, with no manual adjustment.
From 5 × 5 × 5 cm up to 60 × 60 × 80 cm, all on one device.
Plays without sound. Use the speaker button to turn the sound on.
Applications
Built for e-commerce and logistics.
E-commerce fulfilment
The pack station is where shipping costs are decided. EVS 140 measures every order there, before the label is printed.
- True volumetric weight on every label and the best-priced carrier
- The smallest carton that fits, with less void fill
- Dimensions and a photo on record to check carrier invoices
Courier hubs
Check declared sizes at drop-off and plan vehicle capacity.
Receiving & returns
Measure and photograph goods and returns as they arrive.
Storage & load planning
Real dimensions for slotting and vehicle loading.
Specifications
EVS 140 at a glance.
- Measurement speed
- ~0.5 s on average
- Accuracy
- ±5 mm
- 3D sensor
- Latest-generation 3D depth camera
- Measured objects
- Cubic and irregular
- Object size
- 5 × 5 × 5 cm to 60 × 60 × 80 cm
- Outputs
- Length, width, height, weight, volumetric weight, RGB image
- Display
- 10.1″ industrial HDMI touch monitor
- Peripherals
- Barcode scanner, weight scale, label printer
- Interfaces
- REST API, network share, SFTP, USB export
- I/O ports
- 1 × Thunderbolt 4 Type-C with DisplayPort 2.1, 1 × USB 3.2 Gen 2 Type-A, 1 × USB 2.0 Type-A, 1 × HDMI 2.1 (TMDS compatible), 1 × RJ45 LAN, 1 × DC-in
- Remote management
- Cloud connection, web and mobile access via IP, screen control, remote software updates

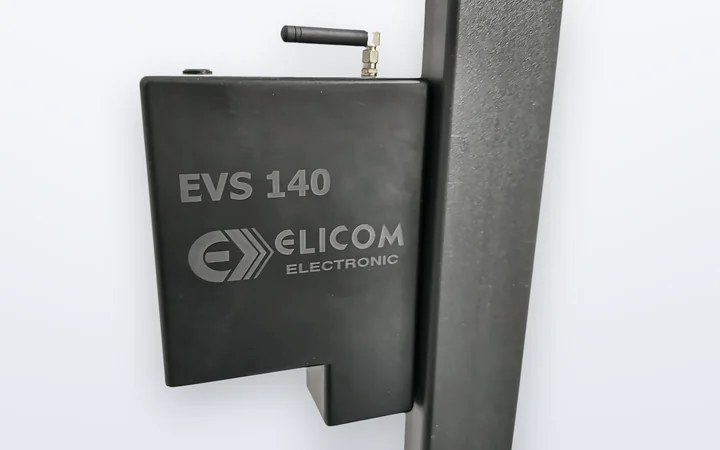

- Computing
- Built in, with no external PC or data storage
- Installation
- Under 10 minutes with two hex keys, simple calibration
Contact
Book a demo.
Tell us about your parcel flow and we will arrange a live EVS 140 demonstration.
